MISSION EXPERT U500 URINE ANALYZER

Expert U500 Urine Analyzer

The Mission® Expert U500 Urine Analyzer is a great tool to use with the Mission® Expert Urinalysis Reagent Strips. This analyzer has the capability of running up to 500 tests per hour and saving up to 2,000 results. The Mission® Expert U500 Urine Analyzer makes high volume testing easy while providing you with confidence in the accuracy of the results.

Fast and Accurate

Up to 500 tests/hour in Continuous Test Option
Test categories include Routine, STAT and QC
Automatic calibration for accurate results and easy operation

Efficient

Can read strips with up to 11 parameters, including Ascorbic Acid
Capture Patient ID via Manual Entry or Barcode Reader
Capable to transfer data to an external computer or LIS

Handy Features

Automatically stores the last 2,000 results
Print up to 3 copies per test
Option to print results on sticker paper

Bilgi

Specification

Features	Specifications
Analyzer Type	Semi- Automatic
Methodology	Reflectance Photometry
Detection	Photosensitive Diode
Throughput	500 tests/ hour (Measuring cycle: 7 seconds/ test)
Test Categories	Routine STAT and QC
Lockout Functions	Strip Lockout: Available Upon Request User/QC Lockout: Included with option to turn ON/OFF
Memory	Last 2,000 results
Strip Incubation Time	1 Minute
Wavelength	525 and 635 nm
Default strip types U033	11U, 10S, 9N, 5KE, 4UE, 2GE
Default strip types U034	11UW, 10SW, 9NW, 5KEW, 4UEW, 2GEW, 2CEW
Strips Available	2 – 11 parameters
Strip Size	108 x 5 mm
Parameter Order	Can select the order of parameters for display and print out
Combinations per analyzer	U033 Strip: 6 combinations U034 Strip: 7 combinations
Waste Disposal Capacity	Up to 150 strips
Analyzer Ports*	RS232C Port for Barcode Reader, Data Transfer, and Software Update USB Port for Data Transfer 25 Pin Parallel Port for External Printer
Data Entry Capabilities*	Urine Color (yellow, orange, red, green, blue, brown, and other) and Clarity (clear, slightly cloudy, cloudy, turbid, and other) – Manual Entry Operator ID/ Patient ID – Manual Entry and Barcode Reader (Up to 25 characters)
Data Transfer Options*	Data for single entry, all the data in database, data from specific date
Data Search Options*	Test number, positive results, patient ID, date, STAT results, QC results
Software Updates*	Can be updated via RS232C cable
Connection Capabilities*	Internal Thermal Printer (included) Optional External Printer (not included) RS232C port for Software Update (included) RS232C Barcode Reader (optional) USB or RS232C Data Transfer Cable (optional)
Major Readable Barcodes	Code 128 Code 39 Codabar (NW-7) EAN 8 EAN 13 Interleave 25 UPCA UPCE
Screen Type*	TFT LCD color touch screen (11.5 x 9 cm)
LIS Interface*	Formatted and compatible with ACON standard interface, HL-7 compliant and other interfaces
Calibration	Automatic
Available Languages on the Screen*	More than 8 languages available, including English
Operating Conditions	0-40″C (32-104″F); < 85% RH
Storage Conditions	-5-50 °C (23-122°F); < 90% RH
Power Source	100-240 VAC, 50-60 Hz
Dimensions	36.6 x 28.3 x 19.5 cm (14.4″ x 11.1″ x 7.7″)
Display Dimensions	11.5 x 9 cm (4.5″ x 3.5″)
Weight	4.0 kg (8.8 lbs.) without batteries or power supply

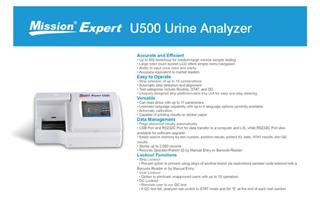

Mission U500 Urine Analyzer
