Expert U120 Urine Analyzer
EXPERT U120 URINE ANALYZER

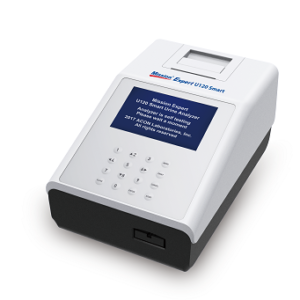

Mission® U120 Smart Urine Analyzer
Mission® U120 Smart Urine Analyzer

The Mission® Expert U120 Urine Analyzer is to be used with the Mission® Expert Urine Reagent Strips. The U120 makes urine testing easier and provides accurate results in 60 seconds.


Fast and Accurate

  • Up to 120 tests/hour in Continuous Test Option
  • Test categories include Routine, STAT and QC
  • Automatic calibration for accurate results and easy operation

Efficient

  • Can read strips with up to 11 parameters, including Ascorbic Acid
  • Capture Patient ID via Manual Entry or Barcode Reader
  • Capable to transfer data to an external computer or LIS

Reliable

  • Automatically stores the last 2,000 results
  • Print up to 3 copies per test
  • Option to print results on sticker paper





Specification

Features Specifications
Type Manual
Methodology Reflectance Photometry
Detection Photosensitive Diode
Throughput
  • Single Test Option: 60 tests/hour
  • Continuous Test Option: 120 tests/hour
Test Categories Routine, STAT and QC
Memory Last 2,000 results
Strip Incubation Time 1 Minute
Wavelength of Monochromatic LED 525 nm and 635 nm
Default strip types U033 11U, 10S, 9N, 5KE, 4UE, 2GE
Default strip types U034 11UW, 10SW, 9NW, 5KEW, 4UEW, 2GEW, 2CEW
Strips Available 2 – 11 parameters
Strip Size 108 x 5 mm
Combinations per Analyzer
  • U033 Strip: 6 combinations
  • U034 Strip: 7 combinations
Analyzer Ports
  • RS232C Port for Barcode Reader or Data Transfer
  • USB Port for Data Transfer
  • 25 Pin Parallel Port for External Printer
Data Entry Capabilities Operator/Patient ID – Manual Entry and Barcode Reader (Up to 20 characters)
Connection Capabilities
  • Internal Thermal Printer (included)
  • Optional External Printer (not included)
  • RS232C Barcode Reader (optional)
  • USB or RS232C Data Transfer Cable (optional)
Major Readable Barcodes
  • Code 128
  • Code 39
  • Codabar (NW-7)
  • EAN 8
  • EAN 13
  • Interleave 25
  • UPCA
  • UPCE
Calibration Automatic
Available Languages on the Screen English and additional language(s)
Operating Conditions 0-40°C (32-104° F); < 85% RH
Storage Conditions -5-50°C (23-122° F); < 90% RH
Power Source 100-240 VAC, 50-60 Hz
Dimensions 27.2 x 26.9 x14.6 cm (10.7″ x 10.6″ x 5.7″ )
Display Dimensions 10.8 x 5.7 cm (4.2″ x 2.2″)
Weight 2.6 kg (5.7 lbs) without batteries or power supply
