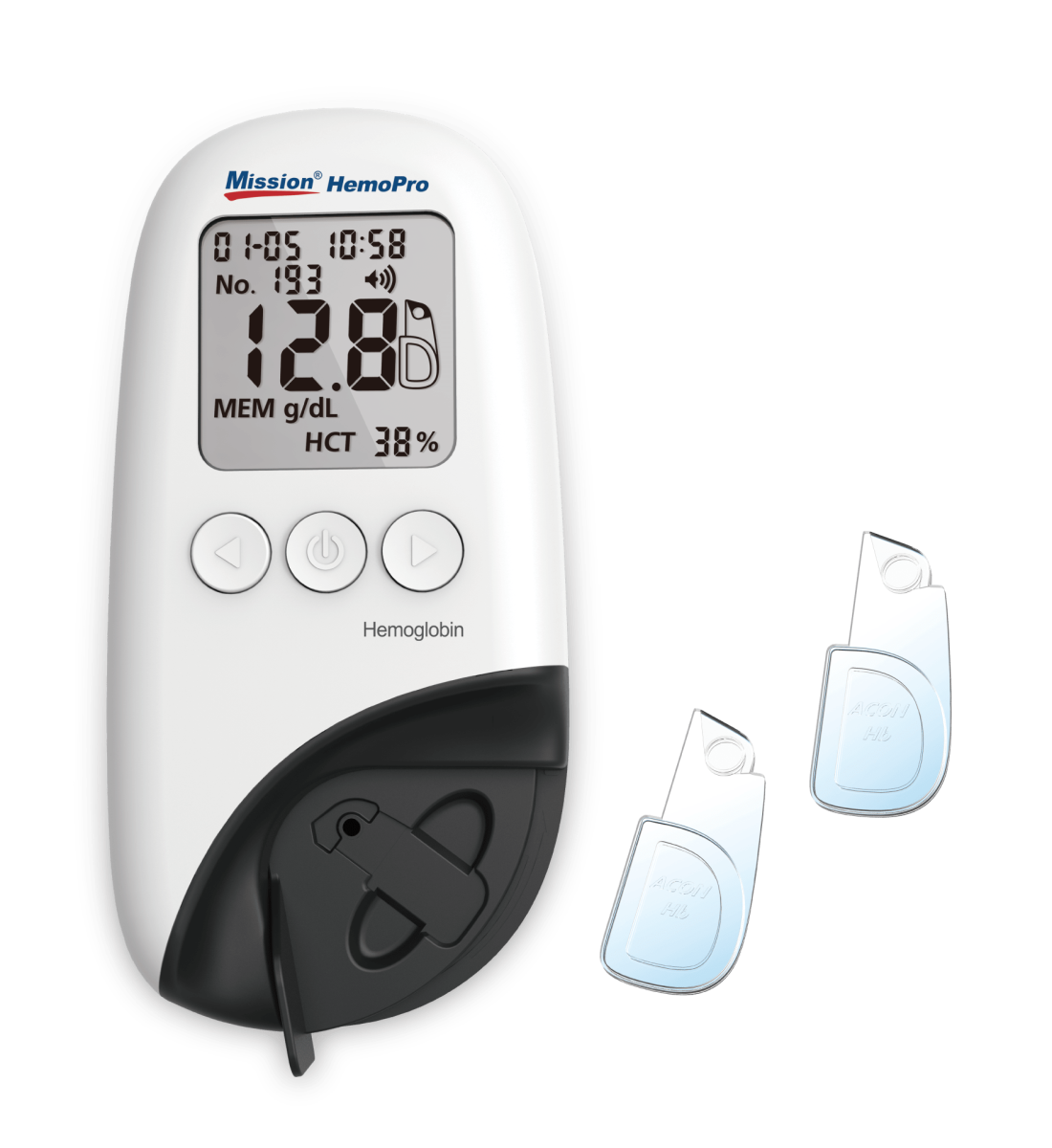

MISSION HEMOPRO

Get Quality Hemoglobin Results
with the Convenience of a Cuvette

Hemoglobin testing with microcuvettes certainly has its advantages, such as direct sampling, results in a few seconds and room-temperature storage of consumables. The Mission® HemoPro Hemoglobin Testing System is a cost-effective, optical hemoglobin analyzer that uses microcuvettes instead of traditional test strips or test cartridges. It provides highly accurate results with excellent precision, along with the many convenient features microcuvettes have to offer. The Mission® HemoPro Hemoglobin Testing System can be used to screen for anemia and related conditions, as well as for therapeutic monitoring.

Features

Economical
Highly Accurate
Results in < 2 Seconds
10 μL Whole Blood
Direct Sampling
Room-temperature Storage
Long Shelf Life
Memory: 1,000 Test Results

Product Specifications

Features	Specifications
Methodology	Spectrophotometry
Test Time	<2 seconds
Hct Value	0-75%
Measurement Range	0-26 g/dL (0-260 g/L or 0-16.1 mmol/L)
Accuracy	Y=1.0063X-0.6203, R²=0.9967
Precision CV	0~10 g/dL: SD≤0.2 g/dL >10 g/dL: CV≤2%
Specimen	Capillary or Venous whole blood
Specimen Volume	10 μL
Power Source	4 AAA batteries (1.5V) AC adapter or powered by PC through USB cable
Battery Life	360 hours or 2,700 tests
Units of Measure	g/dL, g/L, mmol/L
Memory	1,000 records
Automatic Shut Off	5-60 minutes without activity
Meter Size	1507040 mm (5.92.761.57 inch)
Display Size	53*53 mm (3 inch)
Weight	270 g (without batteries)
Meter Storage Conditions	-20- 55 ºC (-4 -131 ºF); ≤90％ RH
Operating Conditions	0 – 40 ºC (32 -104 ºF); ≤90％ RH (non-condensing)
Meter Connectivity	USB cable for data transfer and power supply

Mission HemoPro
